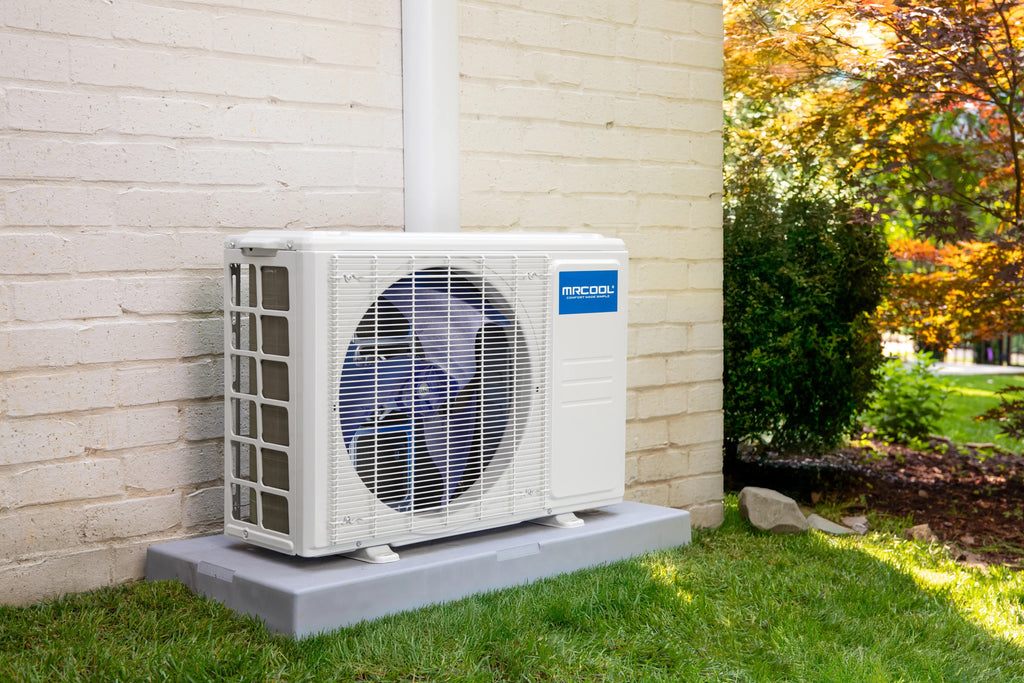

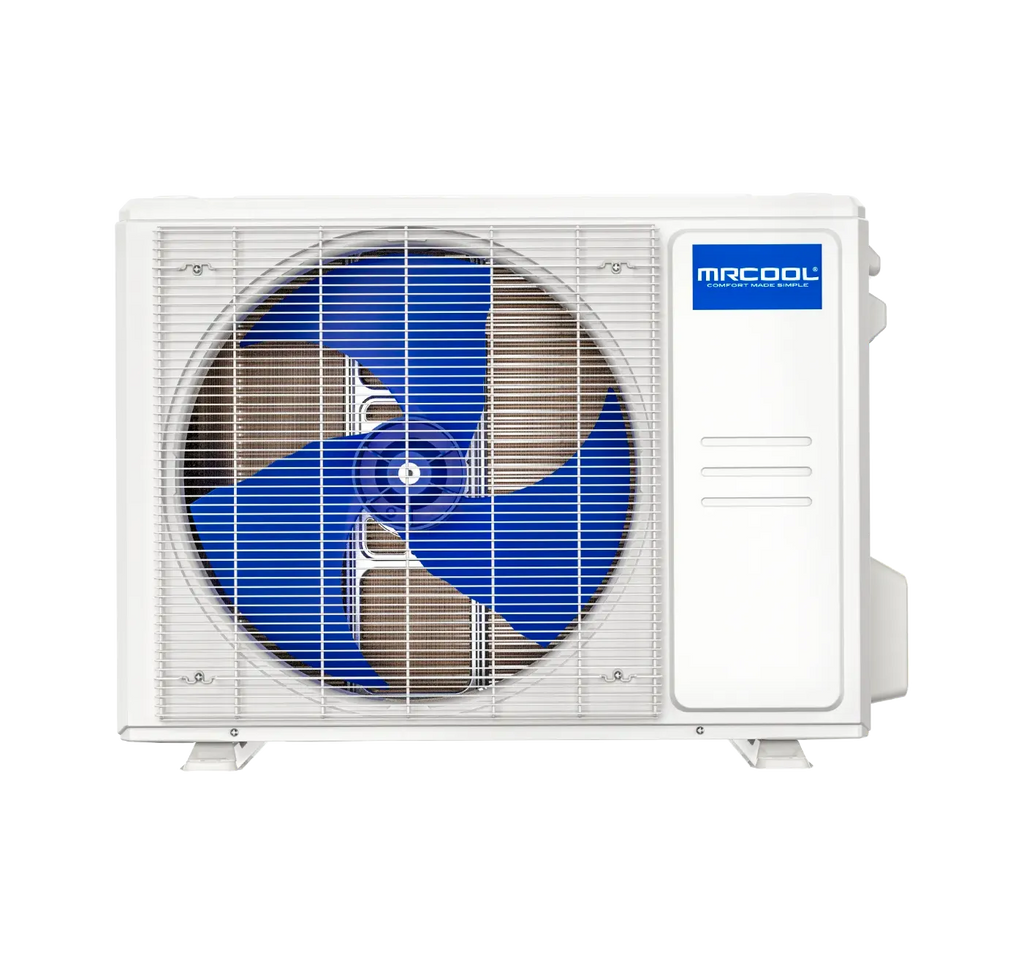

MRCOOL 55k DIY 5th Gen 6-Zone Multi-Zone Condenser 230v
$3,809.00
Skip to product information
MRCOOL 55k DIY 5th Gen 6-Zone Multi-Zone Condenser 230v
$3,809.00
Important: This listing is for the outdoor condenser only. Compatible indoor air handlers and a line set for each zone are required for a complete system — line set size depends on each air handler's BTU size (see below).
Key Features
- 55,000 BTU outdoor condenser (47,000 BTU rated cooling capacity)
- Supports up to 6 zones (2-zone minimum)
- 230V
- Combined indoor air handler load must not exceed condenser's rated output
- Compatible air handler sizes: 6K, 9K, 12K, 18K, 24K, 36K
- Line set required per zone: 1/4" x 3/8" for 6K/9K/12K, 1/4" x 1/2" for 18K, 3/8" x 5/8" for 24K/36K (sold separately)
- Wi-Fi / smart control capability
- Designed for DIY-friendly MRCOOL installation
Not sure which condenser and line set pair with this unit? Contact us at Support@ShopMinisSplitAC.com we'll help you match the condenser, indoor units, and line sets to your space.
